Product image of epson tm t20 POS printer
Home / Hardware / POS printers / Epson TM-T20IV USB/RS POS Printer

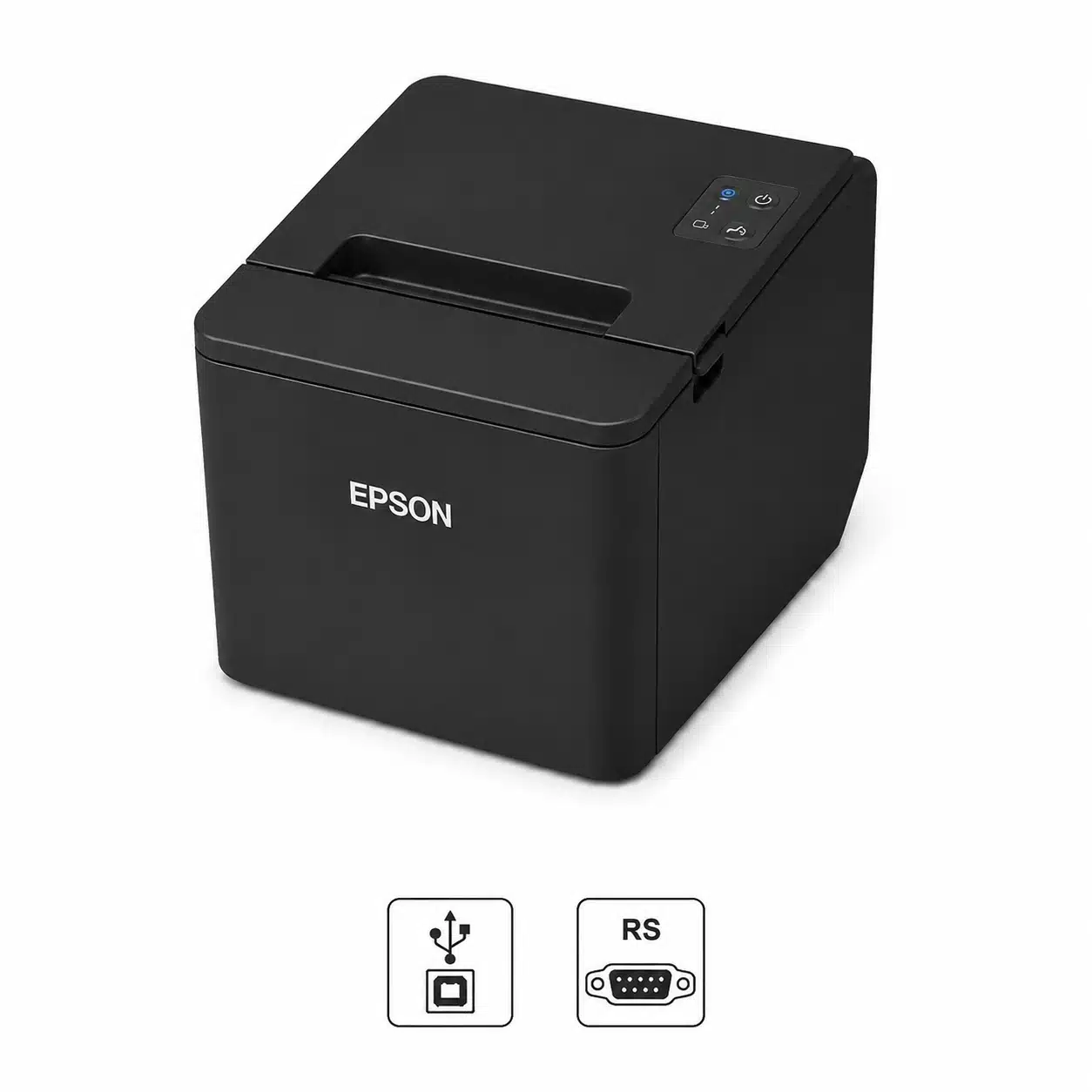

Epson TM-T20IV USB/RS POS Printer

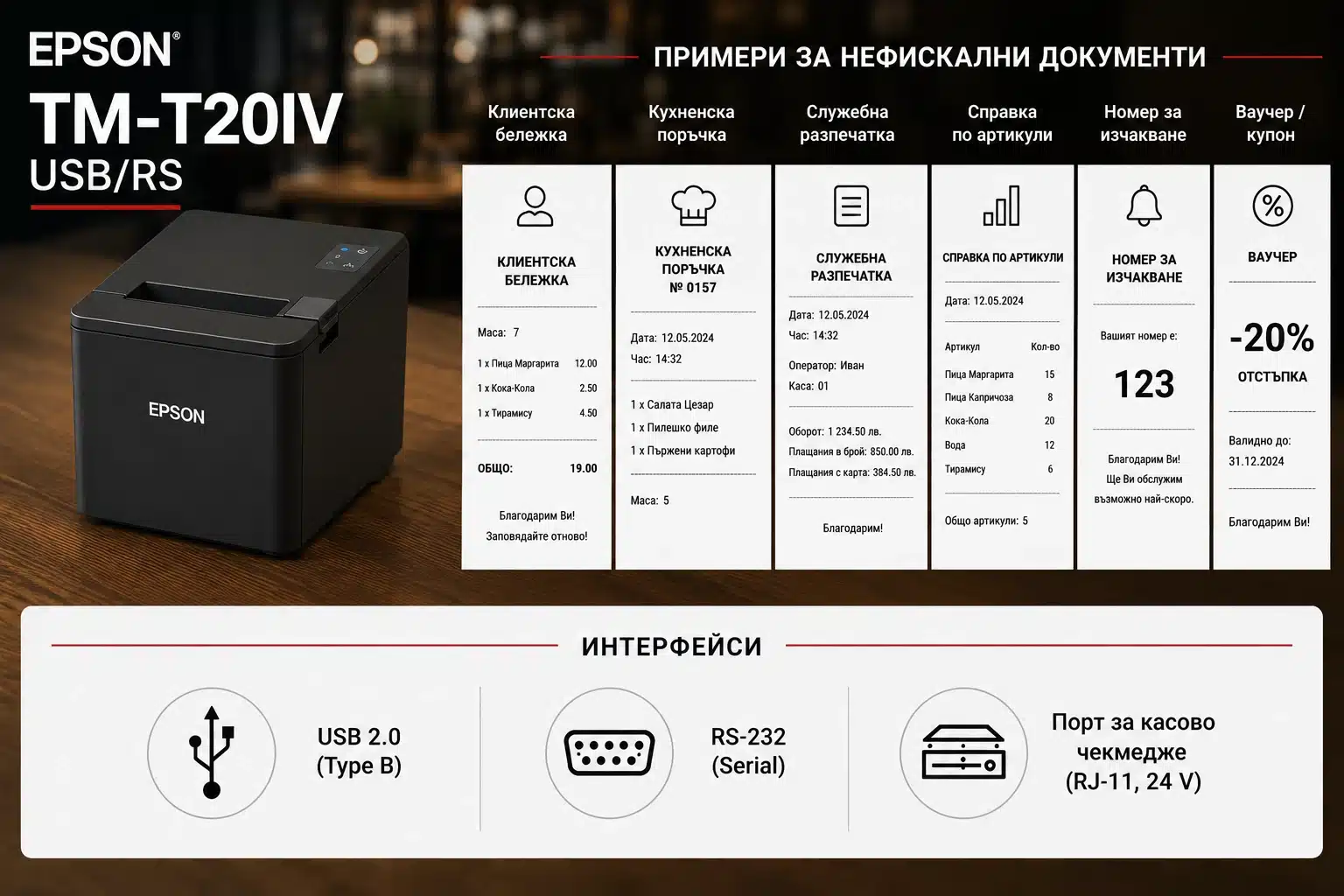

POS printer Epson TM-T20IV USB/RS is a compact and reliable thermal printer for printing non-fiscal documents in POS systems. With a print speed of up to 250 mm/s and a USB+ RS-232 (Serial) interface, it provides fast operation, easy integration and high reliability in everyday use in retail and restaurant sites.

  • An Ethernet version of the Epson TM-T20IV is also available, suitable for direct connection to a local area network (LAN).

228,00 € Цените са с ДДС.

Product Inquiry:

EPSON TM - T20 POS Printer - with USB and RS interface

Epson TM-T20IV USB/RS Application

  • For printing non-fiscal documents in POS systems.
  • Suitable for restaurants, cafes and bars – printing customer notes, kitchen orders and business prints.
  • Suitable for shops and retail outlets for printing non-fiscal documents and references.
  • Ideal for sites where the printer connects directly to a POS terminal or computer via USB or RS-232 (Serial).
  • It is not designed for direct connection to a local area network (LAN) because it does not have an Ethernet interface.

Key Benefits

  • Print speed up to 250 mm/s
  • USB+ RS-232 Interfaces
  • Automatic knife
  • Drop-in Paper Loading
  • Compact and robust housing
  • Reduced paper consumption

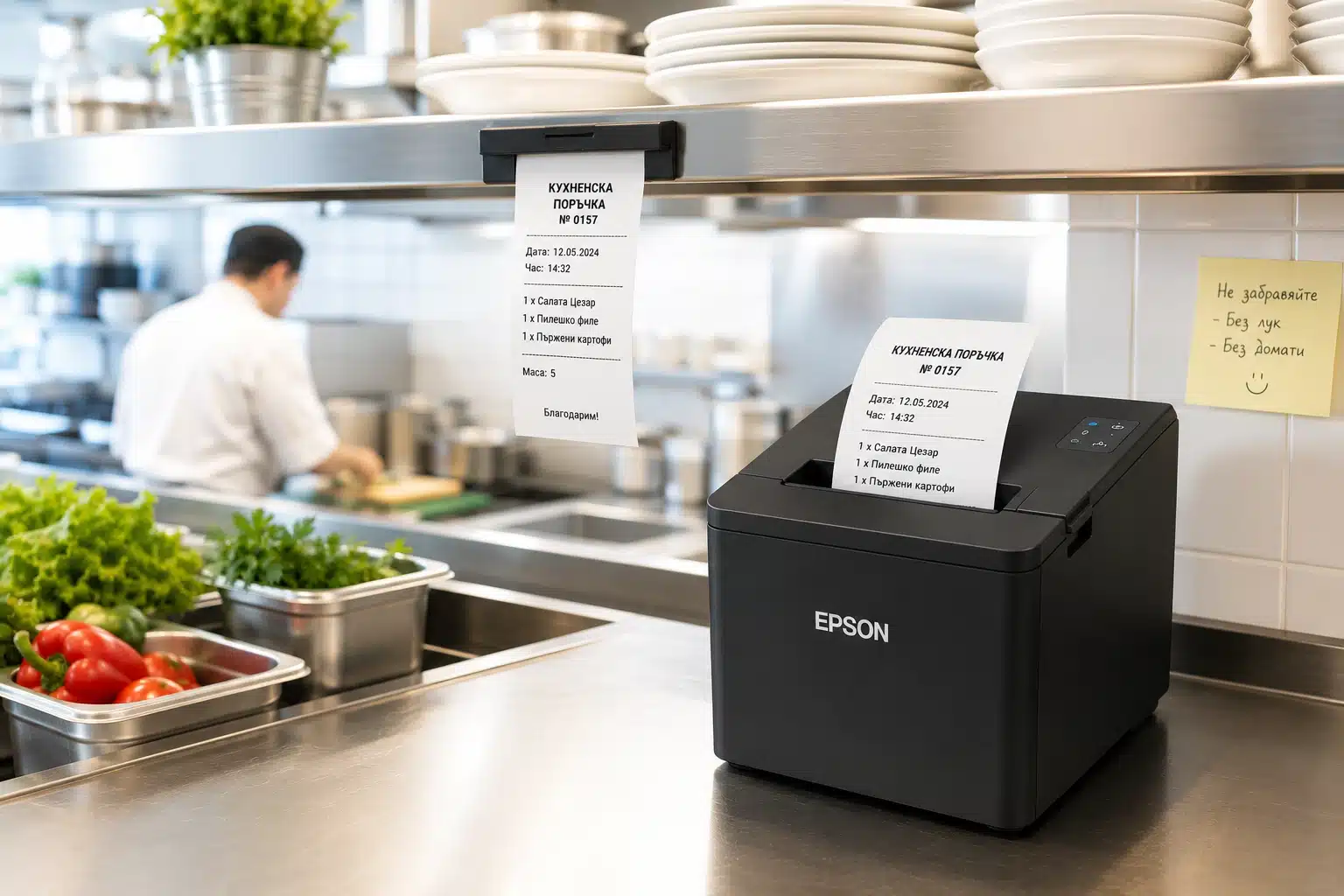

Kitchen POS printer EPSON TM - T20 - with USB and RS interface
Type technology speed width diameter capacity color function Loading Method temperature humidity level life Drawer Port Buffer
Functional features
PrinterNon-fiscal POS thermal printer
PrintingDirect thermal printing
PrintUp to 250 mm/s
Resolution 203 × 203 dpi
Paper80 mm / 58 mm
Maximum rollerØ 83 mm
Column48/64 columns (80 mm)
Font ANK
PrintBlack
Automatic knife Yes, partial cut
Paper-savingYes
PaperDrop-in (easy roller insertion)
Sensors For the end of the paper and for an almost finished roll
Technical specifications
Dimensions (W × L × H) 140 × 199 × 146 mm
Weight 1.7 kg
Color Black
Installation Horizontal, vertical or wall
Working tension 24 V DC
Power supply External AC adapter
Consumption Approx. 1.8 A (Operating Mode), 0.1 A (Standby)
Operating Temperature +5°C to +45°C
Storage-10°C to +50°C
Operating10% – 90%
Noise55 dB(A)
Print head150 km thermal printing
Life of the automatic knife 2 million cuts
Reliability (MTBF) 360,000 hours
Reliability (MCBF) 60 million lines
Warranty 24 months
Communication capabilities
USB USB 2.0 (Type B)
Serial interface RS-232 (Serial)
CashYes (RJ-11, 24 V)
Data4 KB or 45 Bytes

Product Brochure

Official product brochure of EPSON TM-T20IV USB/RS with detailed information about the features, functionalities, technical specifications and connectivity capabilities of the thermal POS printer.
